Stainless steel flanged flange

Product overview

Scope of application: Pipeline connection below PN0.60MPa

Specification range: DN10-500mm

Flange material: Q235 steel


Product Detail

Stainless steel flange flanging and pipe opening flanging movable flanges are mostly used on non-ferrous metals such as copper and aluminum, as well as stainless steel pipelines. Its advantage is that the flange can move freely. The flange is very convenient for threading screws; The disadvantage is that it cannot withstand significant pressure.


The flanging ring plate loose sleeve flange, also known as the non flange air duct, is manufactured in a faster, more convenient, and lower air leakage rate form than traditional rectangular air ducts.

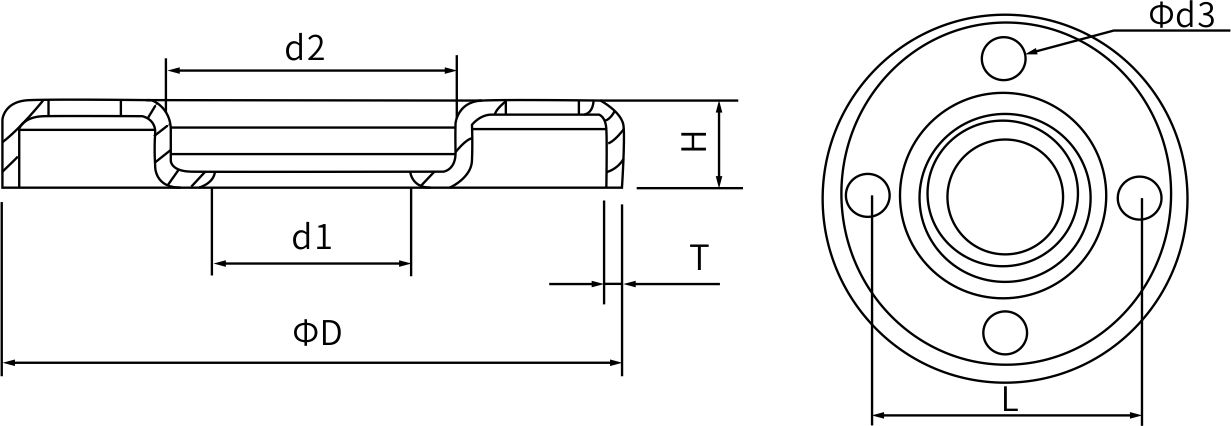

Stainless steel flanged flange(圖(tú)1)

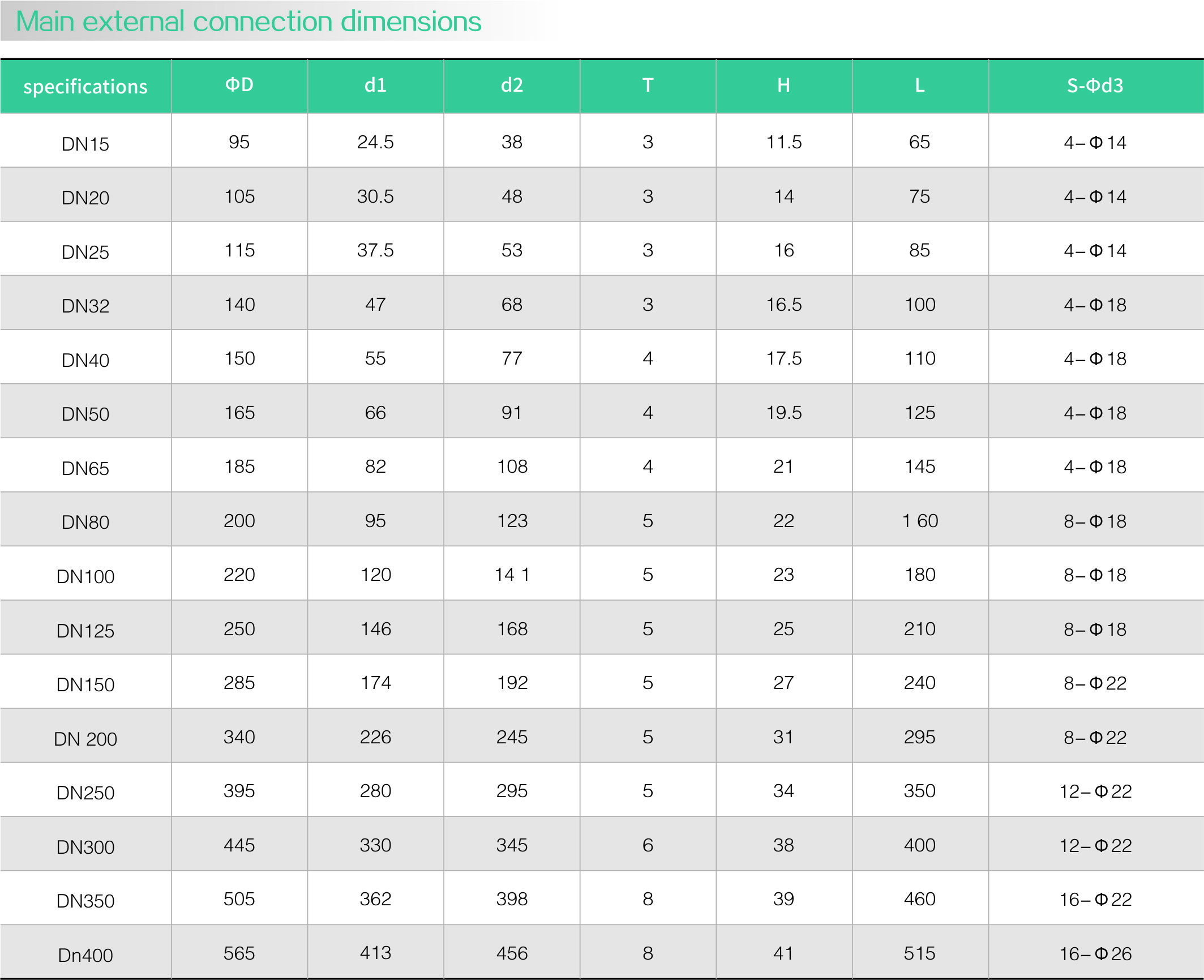

Stainless steel flanged flange(圖2)
